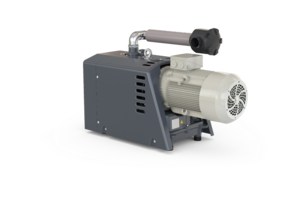

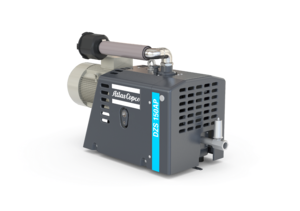

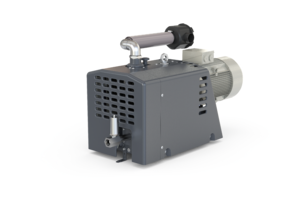

DZS 150AP
DZS 150AP
DZS 150AP
DZS 150AP

Specifications

Displacement @50Hz Max 8.389 × 10⁻³
Displacement @60Hz Max 0.011
Pressure Ultimate 230.00
Power Total Rated @50Hz 11000.00
Power Total Rated @60Hz 15000.00
Noise / Sound Level 84.90 db(A) 84.90 db(A)

DZS 150AP Dry Claw Vacuum Pump, 11 kW (@50 Hz) IEC, 2.3 mbar(a), Air Cooling

3002615223

0 In Stock

Click For Availability Typical lead time 8 week(s)

Variant

Explore the range of variants given below to compare the product

Short Description Part Number
DZS 150AP 400V 50Hz 3Ph
3002615223
DZS 150AP 380V 60Hz 3Ph
3002615224
Product Details

Dry Claw Pumps

Dry claw vacuum pumps are positive displacement pumps that use two claw-shaped rotors to trap and compress gas to create a vacuum. They are oil-free, low maintenance, and can operate continuously without experiencing wear and tear. They are commonly used in industrial applications that require continuously generation of rough vacuum.

DZS

The Atlas Copco single stage dry claw pumps provide the state-of-the-art pumping speed and ultimate pressure, and with strong process resistance , by coated pumping components.

DZS 150AP

single stage dry claw air compressor, able to provide compressed air up to 2.3 bar(g)

Features and Benefits

  • The new generation of fixed speed mono claws is packed with innovative features that increases its performance, generates low noise levels, enhanced reliability and easy on-site maintenance. With its innovative core element with stainless steel claw rotors and its process wetted parts protected by a durable coating. The simplicity, robustness, efficiency, and contaminant handling capability of these pumps make the DZS-series of mono claw vacuum pumps the smart choice for your application.

Specifications

General Product Information

Dimension Length 1.09
Dimension Height 0.671
Dimension Width 0.401
Connection Inlet Flange 1/4" BSPP (or G 1/4") Female
Noise / Sound Level 84.90 db(A)
84.90 db(A)
Power Supply Frequency 50 Hz
Power Supply Phase 3-Ph
Cooling Method Air Cooling
Connection vacuum outlet flange 1/4" BSPP (or G 1/4") Male
Connection Cooling 1/4" BSPP (G) Female
IP Rating IP54
Connection Inlet / Outlet Flange 1/4" BSPP (or G 1/4") Female / 1/4" BSPP (or G 1/4") Male

Lubricants

Default Oil Type Vacuum Fluid Supreme

Operation Conditions - Limitations

Pressure Absolute Inlet Continous Max 1.050 × 10⁵
Altitude Max 1000.00
Temperature Inlet Gas Max 40.00
Oil Capacity Max 7.000 × 10⁻⁴
Pressure Absolute Outlet Continous Max 1.213 × 10⁵

Performance Data

Pressure Ultimate 230.00
Nominal rotational speed 50.00
Power Total Rated 11000.00
Power Total Rated @50Hz 11000.00
Power Total Rated @60Hz 15000.00
Displacement @50Hz Max 8.389 × 10⁻³
Displacement @60Hz Max 0.011

Environmental Conditions

Temperature Ambient Operation Max 40.00
Temperature Ambient Operation Min 0.000
Temperature Ambient Storage Min 0.000
Temperature Ambient Storage Max 40.00

Classification

Classification High / Medium / Rough Vacuum pump Rough Vacuum Pump
Classification Dry or Wet Pump Dry
Classification Vacuum Pump Technology Dry Claw Pump
Classification Product Pressure Range Rough Vacuum: 1000 mbar - 1 mbar

Variants

Electrical Approval IEC
