Specifications
| Displacement @50Hz Max | 0.264 |
| Pressure Ultimate | 20000.00 |
| Power Total Rated @50Hz | 18500.00 |
| Noise / Sound Level | 82.00 db(A) |

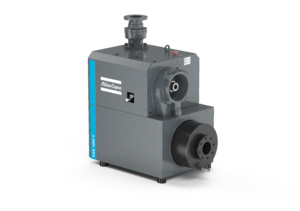

DZS 1000V Dry Claw Vacuum Pump, 18.5 kW (@50 Hz) , 200 mbar(a), Air Cooling
Variant
Explore the range of variants given below to compare the product
| Short Description | Part Number |
|---|---|
| 1905199902 | |
| 1905199908 |
Dry Claw Pumps
Dry claw vacuum pumps are positive displacement pumps that use two claw-shaped rotors to trap and compress gas to create a vacuum. They are oil-free, low maintenance, and can operate continuously without experiencing wear and tear. They are commonly used in industrial applications that require continuously generation of rough vacuum.
DZS
The Atlas Copco single stage dry claw pumps provide the state-of-the-art pumping speed and ultimate pressure, and with strong process resistance , by coated pumping components.
DZS 1000V
single stage dry claw vacuum pump, ultimate pressure down to 200 mbar(a)
Features and Benefits
- Extended pumping speed up to 1000 m3/h, rotor and stator coated by PEEK, state of the art noise level achieved by integrated silencer and optimized outlet design
General Product Information
| Dimension Length | 1.47 |
| Dimension Height | 1.24 |
| Dimension Width | 0.680 |
| Connection Inlet Flange | DN 100 |
| Noise / Sound Level | 82.00 db(A) |
| Power Supply Frequency | 50 Hz |
| Weight | 771.00 |
| Power Supply Phase | 3-Ph |
| Cooling Method | Air Cooling |
| Connection vacuum outlet flange | DN 100 |
| Power Supply Voltage | 3Ph 400V 50Hz |
Performance Data
| Pressure Backing Max | 1.200 × 10⁵ |
| Pressure Ultimate | 20000.00 |
| Nominal rotational speed | 50.00 |
| Power Total Rated @50Hz | 18500.00 |
| Displacement @50Hz Max | 0.264 |
Classification
| Classification High / Medium / Rough Vacuum pump | Rough Vacuum Pump |
| Classification Dry or Wet Pump | Dry pump |
| Classification Vacuum Pump Technology | Dry Claw Pump |
| Classification Product Pressure Range | Rough Vacuum: 1000 mbar - 1 mbar |
Operation Conditions - Limitations
| Pressure Absolute Inlet Continous Max | 1.050 × 10⁵ |
| Altitude Max | 1000.00 |
| Temperature Inlet Gas Max | 40.00 |
| Oil Capacity Max | 2.800 × 10⁻³ |
| Pressure Absolute Outlet Continous Max | 1.200 × 10⁵ |
Environmental Conditions
| Temperature Ambient Operation Max | 40.00 |
| Temperature Ambient Operation Min | 5.00 |
| Temperature Ambient Storage Min | -10.00 |
| Temperature Ambient Storage Max | 60.00 |
