Specifications
| Displacement @50Hz Max | 0.111 |
| Displacement @60Hz Max | 0.111 |
| Pressure Ultimate | 14000.00 |
| Power Total Rated @50Hz | 11000.00 |
| Power Total Rated @60Hz | 11000.00 |
| Noise / Sound Level | 72.00 db(A) 72.00 db(A) |

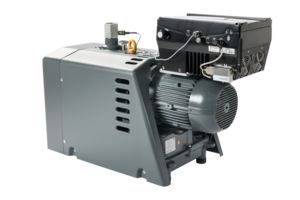

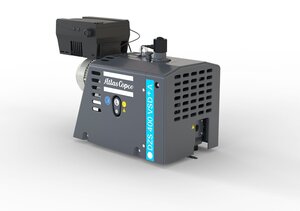

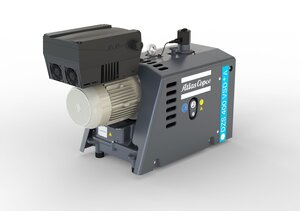

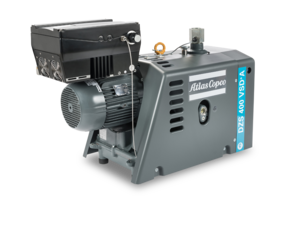

DZS 400 VSD+A Dry Claw Vacuum Pump, 11 kW (@50 Hz) IEC - UL/CUL, 140 mbar(a), Air Cooling
Variant
Explore the range of variants given below to compare the product
| Short Description | Part Number | Variant DZS Efficiency |
|---|---|---|
| 3002615202 | IE3 | |
| 3002615324 | IE4 |
Dry Claw Pumps
Dry claw vacuum pumps are positive displacement pumps that use two claw-shaped rotors to trap and compress gas to create a vacuum. They are oil-free, low maintenance, and can operate continuously without experiencing wear and tear. They are commonly used in industrial applications that require continuously generation of rough vacuum.
DZS VSD+
The DZS 100-400 VSD+ A series are equipped with a Variable Speed Drive helping achieve increased productivity due to the pressure set point control.
These compact machines with small footprint deliver high reliability through a rugged and robust design.
DZS 400 VSD+A
single stage dry claw vacuum pump, ultimate pressure down to 140 mbar(a)
Features and Benefits
- DZS VSD+ delivers exactly what is needed for the application thanks to its VSD+ inverter drive built onto the motor, you can be assured that it will meet demand effortlessly as it’s run with an inverter and PI-Loop. The vacuum pump is a smooth operator, being able to run at its ultimate vacuum level continuously without overheating.
General Product Information
| Dimension Length | 1.09 |
| Dimension Height | 0.763 |
| Dimension Width | 0.501 |
| Connection Inlet Flange |
2" BSPP (G) Female
2" NPT Female |
| Noise / Sound Level |
72.00
db(A)
72.00 db(A) |
| Power Supply Frequency |
50 Hz
60 Hz |
| Weight | 343.00 |
| Power Supply Phase | 3-Ph |
| Cooling Method | Air Cooling |
| Connection vacuum outlet flange |
1 1/4" BSPP (G) Female
1 1/4" NPT Female |
| Power Supply Voltage | 3Ph 380-460V 50/60Hz |
| IP Rating | IP55 |
Performance Data
| Pressure Ultimate | 14000.00 |
| Nominal rotational speed | 70.00 |
| Power Total Rated @50Hz | 11000.00 |
| Power Total Rated @60Hz | 11000.00 |
| Power Consumption Max | 10260.00 |
| Displacement @50Hz Max | 0.111 |
| Displacement @60Hz Max | 0.111 |
| Power at Atmosphere Continous | 10260.00 |
| Power at Ultimate | 7600.00 |
Classification
| Classification High / Medium / Rough Vacuum pump | Rough Vacuum Pump |
| Classification Dry or Wet Pump | Dry pump |
| Classification Vacuum Pump Technology | Dry Claw Pump |
| Classification Product Pressure Range | Rough Vacuum: 1000 mbar - 1 mbar |
Material of Construction
| Material of Construction | - claws (rotos) are made from SS - inside surface of stator is PTFE coated |
Variants
| Electrical Approval | IEC - UL/CUL |
| Variant DZS Efficiency | IE3 |
Operation Conditions - Limitations
| Pressure Absolute Inlet Continous Max | 1.050 × 10⁵ |
| Altitude Max | 1000.00 |
| Temperature Inlet Gas Max | 40.00 |
| Oil Capacity Max | 1.500 × 10⁻³ |
| Pressure Absolute Outlet Continous Max | 20000.00 |
Environmental Conditions
| Temperature Ambient Operation Max | 40.00 |
| Temperature Ambient Operation Min | 5.00 |
| Temperature Ambient Storage Min | -10.00 |
| Temperature Ambient Storage Max | 60.00 |
