Spezifikationen
| Nennsaugvermögen 50Hz | 0.078 |
| Nennsaugvermögen 60Hz | 0.094 |
| Nennleistung gesamt @50Hz | 5500.00 |
| Nennleistung gesamt @60Hz | 6300.00 |
| Geräuschpegel | 72.00 db(A) 72.00 db(A) |

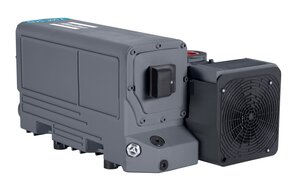

GVS 300A einstufige Drehschieberpumpe, 5.5 kW (@50 Hz), 0.08 mbar(a), Luftkühlung
6.833,00 EUR
In Ihren Warenkorb gelegt
Varianten
Erkunden Sie die unten aufgeführten Varianten und vergleichen Sie das Produkt
| Produktname | Materialnummer | Netzspannung | Elektrische Zulassung |
|---|---|---|---|
| 8153316065 | 3Ph 200-230/380-400V 50Hz | Welt | |
| 8153316073 | 3Ph 220-240, 380-415/460V 50/60Hz | Europa |
GVS 300A
Durch die Bereitstellung hoch effizienter Vakuumleistung ist die GVS 16-630 A Serie ideal für anspruchsvolle Anwendungen in der Verpackung, Holzbearbeitung, Gummi-, Kunststoff-, Elektronik-, Papier- und Druckindustrie, Materialhandling und anderen präzisen Industrien. Zudem bieten 11 Modelle Saugvermögen von 16 bis 840 m³.
Features and Benefits
- • Einfach zu installieren dank kompakter, platzsparender Bauweise • Hohe Zuverlässigkeit durch robustes Design und optimale Ölretention bei allen Betriebsdrücken • Geringer Wartungsaufwand und Verschleiß durch optimal gewählte Wellengeschwindigkeiten • Niedrige Geräusch- und Vibrationspegel im gesamten Druckbereich • Unsere kühlsten Pumpentemperaturen auf dem Markt ermöglichen eine längere Öllebensdauer • Kann bei jedem Einlassdruck im Dauerbetrieb betrieben werden • Hohe Wasseraufnahmefähigkeit und lange Öllebensdauer
General Product Information
| Länge | 1160.00 |
| Höhe | 683.00 |
| Breite | 555.00 |
| Ansaugflansch / Einlass | 2" BSPP (G) Innengewinde |
| Geräuschpegel |
72.00
db(A)
72.00 db(A) |
| Netzfrequenz |
50 Hz
60 Hz |
| Gewicht | 224.00 |
| Netz Phase | 3-Ph |
| Kühlmethode | Luftkühlung |
| Auslassflansch / Auslass | 2" BSPP (G) Innengewinde |
| Netzspannung | 3Ph 220-240, 380-415/460V 50/60Hz |
Lubricants
| Standard Schmiermittel | V-Lube G |
Performance Data
| Druck Vorvakuum max. | 1.163 × 10⁵ |
| Nenndrehzahl | 50.00 |
| Nennleistung gesamt | 5500.00 |
| Nennleistung gesamt @50Hz | 5500.00 |
| Nennleistung gesamt @60Hz | 6300.00 |
| Saugvermögen Luft Stickstoff bei 60Hz | 0.081 |
| Saugvermögen Luft Stickstoff bei 50Hz | 0.067 |
| Nenndrehzahl 50Hz | 50.00 |
| Nenndrehzahl 60Hz | 50.00 |
| Nennsaugvermögen 50Hz | 0.078 |
| Nennsaugvermögen 60Hz | 0.094 |
Classification
| Klassifikation Hoch Mittel Grob-Vakuumpumpe | Grobvakuumpumpe |
| Klassifikation trockene oder nasse Pumpe | Ölgedichtete Pumpe |
| Klassifikation Vakuumpumpen-Technologie | Öl-Drehschieberpumpen einstufig |
| Klassifikation Produkt Druckbereich | Grobvakuum 1000 mbar - 1 mbar |
Variants
| Elektrische Zulassung | Europa |
| Variante | Standardversion |
| Power Pack Version | mit Elektromotor |
| Einlassfilter | ohne Einlassfilter |
Operation Conditions - Limitations
| Einlassdruck absolut maximal kontinuierlich | 1.013 × 10⁵ |
| Einsatzhöhe Max | 1000.00 |
| Maximale Ölmenge | 11.50 |
Environmental Conditions
| Temperatur Umgebung im Betrieb Max | 40.00 |
| Temperatur Umgebung im Betrieb Min | 12.00 |
| Temperatur Umgebung Lagerung Min | -20.00 |
| Temperatur Umgebung Lagerung Max | 50.00 |
