Spezifikationen
| Nennsaugvermögen 50Hz | 6.944 × 10⁻³ |
| Nennsaugvermögen 60Hz | 8.056 × 10⁻³ |
| Enddruck | 50.00 |
| Nennleistung gesamt @50Hz | 900.00 |
| Nennleistung gesamt @60Hz | 1100.00 |
| Geräuschpegel | 59.00 db(A) |

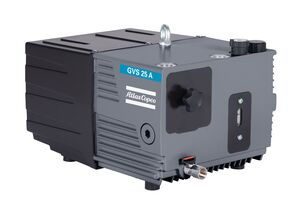

GVS 25A einstufige Drehschieberpumpe, 0.75 kW (@50 Hz), 0.5 mbar(a), Luftkühlung
2.719,00 EUR
In Ihren Warenkorb gelegt
Varianten
Erkunden Sie die unten aufgeführten Varianten und vergleichen Sie das Produkt
| Produktname | Materialnummer | Netzspannung |
|---|---|---|
| 8153315786 | 3Ph 200-240, 380-415V 50Hz / 220-266, 380-460V 60Hz | |
| 8153315794 | 3Ph 200-230/380-400V 50Hz | |
| 8153316776 | 3Ph 200-230/380-400V 50Hz |
GVS 25A
Durch die Bereitstellung hoch effizienter Vakuumleistung ist die GVS 16-630 A Serie ideal für anspruchsvolle Anwendungen in der Verpackung, Holzbearbeitung, Gummi-, Kunststoff-, Elektronik-, Papier- und Druckindustrie, Materialhandling und anderen präzisen Industrien. Zudem bieten 11 Modelle Saugvermögen von 16 bis 840 m³.
Features and Benefits
- • Einfach zu installieren dank kompakter, platzsparender Bauweise • Hohe Zuverlässigkeit durch robustes Design und optimale Ölretention bei allen Betriebsdrücken • Geringer Wartungsaufwand und Verschleiß durch optimal gewählte Wellengeschwindigkeiten • Niedrige Geräusch- und Vibrationspegel im gesamten Druckbereich • Unsere kühlsten Pumpentemperaturen auf dem Markt ermöglichen eine längere Öllebensdauer • Kann bei jedem Einlassdruck im Dauerbetrieb betrieben werden • Hohe Wasseraufnahmefähigkeit und lange Öllebensdauer
General Product Information
| Länge | 0.440 |
| Höhe | 0.347 |
| Breite | 0.267 |
| Ansaugflansch / Einlass | 1/2" BSPP (G) Innengewinde |
| Geräuschpegel | 59.00 db(A) |
| Netzfrequenz |
50 Hz
60 Hz |
| Gewicht | 26.00 |
| Netz Phase | 3-Ph |
| Kühlmethode | Luftkühlung |
| Auslassflansch / Auslass | 1/2" BSPP (G) Innengewinde |
| Netzspannung | 3Ph 200-240, 380-415V 50Hz / 220-266, 380-460V 60Hz |
Lubricants
| Standard Schmiermittel | V-Lube G |
Performance Data
| Druck Vorvakuum max. | 1.163 × 10⁵ |
| Enddruck | 50.00 |
| Nenndrehzahl | 50.00 |
| Nennleistung gesamt | 900.00 |
| Nennleistung gesamt @50Hz | 900.00 |
| Nennleistung gesamt @60Hz | 1100.00 |
| Saugvermögen Luft Stickstoff bei 60Hz | 6.944 × 10⁻³ |
| Saugvermögen Luft Stickstoff bei 50Hz | 6.250 × 10⁻³ |
| Nenndrehzahl 50Hz | 50.00 |
| Nenndrehzahl 60Hz | 50.00 |
| Nennsaugvermögen 50Hz | 6.944 × 10⁻³ |
| Nennsaugvermögen 60Hz | 8.056 × 10⁻³ |
Classification
| Klassifikation Hoch Mittel Grob-Vakuumpumpe | Grobvakuumpumpe |
| Klassifikation trockene oder nasse Pumpe | Ölgedichtete Pumpe |
| Klassifikation Vakuumpumpen-Technologie | Öl-Drehschieberpumpen einstufig |
| Klassifikation Produkt Druckbereich | Grobvakuum 1000 mbar - 1 mbar |
Variants
| Elektrische Zulassung | Welt |
| Variante | Standardversion |
| Power Pack Version | mit Elektromotor |
| Einlassfilter | ohne Einlassfilter |
Operation Conditions - Limitations
| Einlassdruck absolut maximal kontinuierlich | 1.013 × 10⁵ |
| Einsatzhöhe Max | 1000.00 |
| Gaseintrittstemperatur Max | 40.00 |
| Maximale Ölmenge | 2.000 × 10⁻³ |
| Maximaler absoluter Gegendruck | 15000.00 |
Environmental Conditions
| Temperatur Umgebung im Betrieb Max | 40.00 |
| Temperatur Umgebung im Betrieb Min | 12.00 |
| Temperatur Umgebung Lagerung Min | -20.00 |
| Temperatur Umgebung Lagerung Max | 50.00 |
