Spezifikationen
| Nennsaugvermögen 50Hz | 0.027 |
| Nennsaugvermögen 60Hz | 0.033 |
| Enddruck | 50.00 |
| Nennleistung gesamt @50Hz | 2200.00 |
| Nennleistung gesamt @60Hz | 3500.00 |
| Geräuschpegel | 61.00 db(A) 61.00 db(A) |

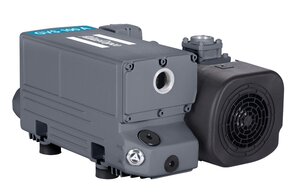

GVS 100A einstufige Drehschieberpumpe, 2.2 kW (@50 Hz), 0.5 mbar(a), Luftkühlung
4.205,00 EUR
In Ihren Warenkorb gelegt
Varianten
Erkunden Sie die unten aufgeführten Varianten und vergleichen Sie das Produkt
| Produktname | Materialnummer | Netzspannung | Elektrische Zulassung |
|---|---|---|---|
| 8153315901 | 3Ph 200-230/380-400V 50Hz | Welt | |
| 8153315919 | 3Ph 220-240, 380-415/460V 50/60Hz | Europa |
GVS 100A
Durch die Bereitstellung hoch effizienter Vakuumleistung ist die GVS 16-630 A Serie ideal für anspruchsvolle Anwendungen in der Verpackung, Holzbearbeitung, Gummi-, Kunststoff-, Elektronik-, Papier- und Druckindustrie, Materialhandling und anderen präzisen Industrien. Zudem bieten 11 Modelle Saugvermögen von 16 bis 840 m³.
Features and Benefits
- • Einfach zu installieren dank kompakter, platzsparender Bauweise • Hohe Zuverlässigkeit durch robustes Design und optimale Ölretention bei allen Betriebsdrücken • Geringer Wartungsaufwand und Verschleiß durch optimal gewählte Wellengeschwindigkeiten • Niedrige Geräusch- und Vibrationspegel im gesamten Druckbereich • Unsere kühlsten Pumpentemperaturen auf dem Markt ermöglichen eine längere Öllebensdauer • Kann bei jedem Einlassdruck im Dauerbetrieb betrieben werden • Hohe Wasseraufnahmefähigkeit und lange Öllebensdauer
General Product Information
| Länge | 762.00 |
| Höhe | 488.00 |
| Breite | 398.00 |
| Ansaugflansch / Einlass | 1 1/4" BSPP (G) Innengewinde |
| Geräuschpegel |
61.00
db(A)
61.00 db(A) |
| Netzfrequenz |
50 Hz
60 Hz |
| Gewicht | 93.00 |
| Netz Phase | 3-Ph |
| Kühlmethode | Luftkühlung |
| Auslassflansch / Auslass | 1 1/4" BSPP (G) Innengewinde |
| Netzspannung | 3Ph 220-240, 380-415/460V 50/60Hz |
Lubricants
| Standard Schmiermittel | V-Lube G |
Performance Data
| Druck Vorvakuum max. | 1.163 × 10⁵ |
| Enddruck | 50.00 |
| Nenndrehzahl | 50.00 |
| Nennleistung gesamt @50Hz | 2200.00 |
| Nennleistung gesamt @60Hz | 3500.00 |
| Nenndrehzahl 50Hz | 50.00 |
| Nenndrehzahl 60Hz | 50.00 |
| Nennsaugvermögen 50Hz | 0.027 |
| Nennsaugvermögen 60Hz | 0.033 |
Classification
| Klassifikation Hoch Mittel Grob-Vakuumpumpe | Grobvakuumpumpe |
| Klassifikation trockene oder nasse Pumpe | Ölgedichtete Pumpe |
| Klassifikation Vakuumpumpen-Technologie | Öl-Drehschieberpumpen einstufig |
| Klassifikation Produkt Druckbereich | Grobvakuum 1000 mbar - 1 mbar |
Variants
| Elektrische Zulassung | Europa |
| Variante | Standardversion |
| Power Pack Version | mit Elektromotor |
| Einlassfilter | ohne Einlassfilter |
Operation Conditions - Limitations
| Einlassdruck absolut maximal kontinuierlich | 1.013 × 10⁵ |
| Einsatzhöhe Max | 1000.00 |
| Gaseintrittstemperatur Max | 40.00 |
| Maximale Ölmenge | 2.000 × 10⁻³ |
| Maximaler absoluter Gegendruck | 15000.00 |
Environmental Conditions
| Temperatur Umgebung im Betrieb Max | 40.00 |
| Temperatur Umgebung im Betrieb Min | 12.00 |
| Temperatur Umgebung Lagerung Min | -20.00 |
| Temperatur Umgebung Lagerung Max | 50.00 |
- 6996022496_AIB_GVS_16-630_A_BR.pdf - Brazilian Portuguese - AIB Instruction Manual
- 6996022431_AIB_GVS_16-630_A_BG.pdf - Bulgarian - AIB Instruction Manual
- 6996022432_AIB_GVS_16-630_A_CZ.pdf - Czech - AIB Instruction Manual
- 6996022433_AIB_GVS_16-630_A_DA.pdf - Danish - AIB Instruction Manual
- 6996022444_AIB_GVS_16-630_A_NL.pdf - Dutch - AIB Instruction Manual
- 6996023493-ACV-Spec-sheet-Catalouge-NL-Web.pdf - Dutch - Sales Leaflet
- 9820910221_AIB_GVS_100-630A_Oil_Level_Switch_EN.pdf - English - AIB Instruction Manual
- 2031000375_AIB_GVS_16-300_R_EN.pdf - English - AIB Instruction Manual
- 6996022430_AIB_GVS_16-630_A_EN.pdf - English - AIB Instruction Manual
- 9820910223_AIB_GVS_16-630A_Dp_Exhaust_Filter_Gauge_EN.pdf - English - AIB Instruction Manual
- 9820910225_AIB_GVS_16-630A_Inlet_Filter_EN.pdf - English - AIB Instruction Manual
- 9820910226_AIB_GVS_40-300A_Liquid_Separator_EN.pdf - English - AIB Instruction Manual
- 9820910224_AIB_GVS_40-300A_Oil_Temperature_Switch_EN.pdf - English - AIB Instruction Manual
- 9820910222_AIB_GVS_40-630A_Dp_Exhaust_Filter_Switch_EN.pdf - English - AIB Instruction Manual
- 9820912600_AIB_GVS100A_Adapter_Kit_to_DRB250-500_EN.pdf - English - AIB Instruction Manual
- 9820912700_AIB_GVS200A_Adapter_Kit_to_DRB500-1000_EN.pdf - English - AIB Instruction Manual
- 9820912800_AIB_GVS300A_Adapter_Kit_to_DRB500-1000_EN.pdf - English - AIB Instruction Manual
- ASL_GVS_16-630_A_Options_Overview_EN.pdf - English - ASL Spares List
- Dimension drawing - GVS100A 3PH STD - 9820910182.pdf - English - Dimensional Drawing
- Dimension drawing - GVS16-25A 1-3PHSTD - 9820910179.pdf - English - Dimensional Drawing
- Dimension drawing - GVS200A 3PH STD - 9820910183-02.pdf - English - Dimensional Drawing
- Dimension drawing - GVS300A 3PH STD - 9820910184.pdf - English - Dimensional Drawing
- Dimension drawing - GVS40A 1-3PH STD - 9820910180.pdf - English - Dimensional Drawing
- Dimension drawing - GVS470A 3PH STD - 9820910185.pdf - English - Dimensional Drawing
- Dimension drawing - GVS60A 3PH STD - 9820910181.pdf - English - Dimensional Drawing
- Dimension drawing - GVS630A 3PH STD - 9820910186.pdf - English - Dimensional Drawing
- Dimensions_drawing_TianjinGVS100A.pdf - English - Dimensional Drawing
- Dimensions_drawing_TianjinGVS16A_1ph.pdf - English - Dimensional Drawing
- Dimensions_drawing_TianjinGVS200A.pdf - English - Dimensional Drawing
- Dimensions_drawing_TianjinGVS25A_1ph.pdf - English - Dimensional Drawing
- Dimensions_drawing_TianjinGVS25A_3ph.pdf - English - Dimensional Drawing
- Dimensions_drawing_TianjinGVS300A.pdf - English - Dimensional Drawing
- Dimensions_drawing_TianjinGVS40A.pdf - English - Dimensional Drawing
- Dimensions_drawing_TianjinGVS60A.pdf - English - Dimensional Drawing
- Dimensions_drawing_TianjinGVS630A.pdf - English - Dimensional Drawing
- dimension drawing GVS220 TJ.pdf - English - Dimensional Drawing
- Flow diagram - GVS 100A and GVS 300A - 9820910172.pdf - English - Flow Diagram
- Flow diagram - GVS 16 - 25A - 9820910168.pdf - English - Flow Diagram
- Flow diagram - GVS 200 A - 9820910173.pdf - English - Flow Diagram
- Flow diagram - GVS 40 - 60A - 9820910169.pdf - English - Flow Diagram
- Flow diagram - GVS 470 - 630A - 9820910174.pdf - English - Flow Diagram
- Flow_diagram_TianjinGVS16A.pdf - English - Flow Diagram
- Flow_diagram_TianjinGVS200A.pdf - English - Flow Diagram
- Flow_diagram_TianjinGVS220A.pdf - English - Flow Diagram
- Flow_diagram_TianjinGVS25A.pdf - English - Flow Diagram
- Flow_diagram_TianjinGVS40_60A.pdf - English - Flow Diagram
- Flow_diagram_TianjinGVS630A.pdf - English - Flow Diagram
- INSTALLATION DRAWING GVS200A 3PH STD - 9820910191-02.pdf - English - Installation Diagram
- INSTALLATION DRAWING GVS300A 3PH STD - 9820910192.pdf - English - Installation Diagram
- INSTALLATION DRAWING GVS40A 1-3PH STD - 9820910188.pdf - English - Installation Diagram
- INSTALLATION DRAWING GVS470A 3PH STD - 9820910193.pdf - English - Installation Diagram
- INSTALLATION DRAWING GVS60A 3PH STD - 9820910189.pdf - English - Installation Diagram
- INSTALLATION DRAWING GVS630A 3PH STD - 9820910194.pdf - English - Installation Diagram
- Installation_drawing_TianjinGVS16A_1ph.pdf - English - Installation Diagram
- Installation_drawing_TianjinGVS25A_1ph.pdf - English - Installation Diagram
- 6996 0099 03_Vacuum Solutions Overview_new VI_Verti_LR.pdf - English - Resource Library Document
- 6996007393-GVS-VSD+-EN-Web.pdf - English - Sales Leaflet
- 6996009903-ACV-Overview-brochure-Web.pdf - English - Sales Leaflet
- 6996023493-ACV-Spec-sheet-Catalouge-EN-Web.pdf - English - Sales Leaflet
- 6996023993-Inlet-filter-Datasheet-EN-Web.pdf - English - Sales Leaflet
- ACV-Systems + Solutions-Brochure-Web.pdf - English - Sales Leaflet
- 6996022437_AIB_GVS_16-630_A_ET.pdf - Estonian - AIB Instruction Manual
- 6996022438_AIB_GVS_16-630_A_FI.pdf - Finnish - AIB Instruction Manual
- GVS 16 - 630 A Sales Brochure - Finnish.pdf - Finnish - Sales Leaflet
- 6996022439_AIB_GVS_16-630_A_FR.pdf - French - AIB Instruction Manual
- 6996005903-GVS-VSD+-FR-Web.pdf - French - Sales Leaflet
- 6996023493-ACV-Spec-sheet-Catalouge-FR-Web.pdf - French - Sales Leaflet
- 6996022434_AIB_GVS_16-630_A_DE.pdf - German - AIB Instruction Manual
- 6996005904-GVS-VSD+-DE-Web.pdf - German - Sales Leaflet
- 6996023493-ACV-Spec-sheet-Catalouge-DE-Web.pdf - German - Sales Leaflet
- 6996022440_AIB_GVS_16-630_A_HU.pdf - Hungarian - AIB Instruction Manual
- 6996022441_AIB_GVS_16-630_A_IT.pdf - Italian - AIB Instruction Manual
- 6996005907-GVS-VSD+-IT-Web.pdf - Italian - Sales Leaflet
- 6996023493-ACV-Spec-sheet-Catalouge-IT-Web.pdf - Italian - Sales Leaflet
- 6996022455_AIB_GVS_16-630_A_JA.pdf - Japanese - AIB Instruction Manual
- 6996022443_AIB_GVS_16-630_A_LV.pdf - Latvian - AIB Instruction Manual
- 6996022442_AIB_GVS_16-630_A_LT.pdf - Lithuanian - AIB Instruction Manual
- 6996022445_AIB_GVS_16-630_A_NO.pdf - Norwegian - AIB Instruction Manual
- 6996022446_AIB_GVS_16-630_A_PL.pdf - Polish - AIB Instruction Manual
- 6996022447_AIB_GVS_16-630_A_PO.pdf - Portuguese (European) - AIB Instruction Manual
- 6996022448_AIB_GVS_16-630_A_RO.pdf - Romanian - AIB Instruction Manual
- 6996022449_AIB_GVS_16-630_A_RU.pdf - Russian - AIB Instruction Manual
- 6996605993-GVS-VSD+-RU-Web.pdf - Russian - Sales Leaflet
- 6996022495_AIB_GVS_16-630_A_ZH.pdf - Simplified Chinese - AIB Instruction Manual
- 6996022450_AIB_GVS_16-630_A_SK.pdf - Slovakian - AIB Instruction Manual
- 6996022451_AIB_GVS_16-630_A_SL.pdf - Slovenian - AIB Instruction Manual
- 6996022436_AIB_GVS_16-630_A_ES.pdf - Spanish (European) - AIB Instruction Manual
- 6996005905-GVS-VSD+-ES-Web.pdf - Spanish (European) - Sales Leaflet
- 6996023493-ACV-Spec-sheet-Catalouge-ES-Web.pdf - Spanish (European) - Sales Leaflet
- 6996022452_AIB_GVS_16-630_A_SV.pdf - Swedish - AIB Instruction Manual
- 6996022454_AIB_GVS_16-630_A_ZF.pdf - Traditional Chinese - AIB Instruction Manual
- 6996022453_AIB_GVS_16-630_A_TR.pdf - Turkish - AIB Instruction Manual
- 6996005938-GVS-VSD+-TR-Web.pdf - Turkish - Sales Leaflet
| Produktname | Artikelnummer | Preis | Zum Warenkorb hinzufügen |
|---|---|---|---|
| Vakuumtank 270L, -1,05 - 0 bar(a) G1 1/ | 8092300345 | 1.978,00 EUR | |
| Vakuumtank 500L, -1,05 - 0 bar(a) G2 1/ | 8092300352 | 2.842,00 EUR | |
| Vakuumtank 1000L, -1,05 - 0 bar(a) PN16 | 8092300360 | 5.615,00 EUR | |
| Vakuumtank 2000L, -1,05 - 0 bar(a) PN16 | 8092300378 | 8.877,00 EUR | |
| Vakuumtank 3000L, -1,05 - 0 bar(a) PN16 | 8092300386 | 12.162,00 EUR | |
| T-Flüssigkeitsabscheider 1 1/4 | 8092300843 | 2.294,00 EUR | |
| Automatic Drain AVD 230 VAC | 8092300349 | 4.547,00 EUR | |
| DP-Messgerät GVS 40-630A | 8092302002 | 270,00 EUR | |
| Temperaturschalter GVS 40-100A & GVS 300A | 8092301830 | 350,00 EUR | |
| T-Einlassfilter 1 1/4 | 8092300033 | 1.529,00 EUR | |
| DP Schalter GVS 40-630A | 8092301822 | 510,00 EUR | |
| Ölstandsschalter GVS 100A & GVS 300A | 8092301780 | 610,00 EUR |
| Produktname | Artikelnummer | Preis | Zum Warenkorb hinzufügen |
|---|---|---|---|
| OIL SEPARATOR ELE. GVS 60-100A | 3001170184 | 89,70 EUR | |
| OIL SEPARATOR ELE. GVS 60-100A | 3001170187 | 126,00 EUR | |
| ÖLFILTER GVS 100A | 3001170191 | 26,70 EUR | |
| POLY INLET FILTER ELEMENT GVS60-100A | 3001170196 | 175,00 EUR | |
| PFPE-ÖL 1 L | 3001170199 | 1.027,00 EUR | |
| Vacuum Vane Fluid 68 1 Litre | 1630204501 | 25,70 EUR | |
| Minor Maintenance Kit GVS 100A | SK9605M | 149,00 EUR | |
| Major Maintenance Kit GVS100A, DS | SK9605001 | 818,00 EUR | |
| DSS SHAFT SEALS+BUSH. KIT-V100/120B(IFC) | GK9605DS1 | 291,00 EUR | |
| REPAIR KIT GVS 100A O2 | 3001170177 | 2.584,00 EUR | |
| SEALS KIT GVS 100A O2 | 3001170149 | 2.096,00 EUR | |
| Seals Kit GVS 100A | 3002601612 | 220,00 EUR | |
| Repair Kit GVS100A | 3002601613 | 685,00 EUR | |
| MAINTENANCE KIT GVS 100A O2 | 3001170163 | 508,00 EUR | |
| SEALS KIT GVS 100A | 3001170143 | 298,00 EUR | |
| MAINTENANCE KIT GVS 100A | 3001170157 | 165,00 EUR |
