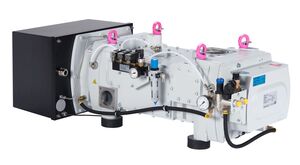

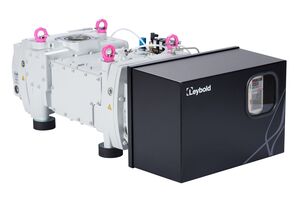

DRYVAC DV 650 - 380-480V (LVO 210)
DRYVAC
The benchmark for industrial applications! Meet the models in our smart DRYVAC series. The DRYVAC family offers product in a pumping speed range from 200 to 1600 m3/h. By combining these screw pumps with our RUVAC roots pump portfolio all pumping speed requirements can be met. Enjoy best-in-class performance, reliability and efficiency.
What makes top-performing pumps even more intelligent? Smart accessories. All DRYVAC models are equipped with a frequency converter and offer compatibility with a intelligent range of fieldbus protocols for maximum flexibility. This built-in frequency converter operates in conjunction with three standard sensors to monitor all electrical, thermal and mechanical components. The sensors detect the exhaust pressure, motor temperature and water outlet temperature and issue status updates and warnings when needed. Taking efficiency up a notch: with a frequency converter, DRYVAC moves up a whole class, making it the most efficient pump available. Fieldbus compatibility makes DRYVAC vacuum pumps ready for the demands of smart manufacturing. All pumps offer serial I/O solutions including a RS485 interface and support for various fieldbus protocols.
Features and Benefits
- Harshest applications ready - Hermetically sealed, several purge options, flushable
- Plug & Play - Inbuilt intelligent FC, easy networking & control, IoT ready
- Performance Driven - High and stable pumping speed
- Energy Efficiency - Low power due to rotor design and blow off valves
- Compact - Significantly smaller than all equivalent pumps
General Product Information
| Dimension Length | 1.28 |
| Dimension Height | 0.420 |
| Dimension Width | 0.570 |
| Connection Inlet Flange | DN 100 ISO-K |
| Noise / Sound Level |
67.00
db(A)
67.00 db(A) |
| Power Supply Frequency |
50 Hz
60 Hz |
| Weight | 589.00 |
| Power Supply Phase | 3-Ph |
| Cooling Method | Water Cooling |
| Connection vacuum outlet flange | DN 63 ISO-K |
| Power Supply Voltage | 3Ph 380-460V 50/60Hz |
| IP Rating | IP54 |
| Dimension Comments | The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. We always recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models. |
| Connection Inlet / Outlet Flange | DN 100 ISO-K | DN 63 ISO-K |
Performance Data
| Pressure Ultimate | 0.500 |
| Power Total Rated | 15000.00 |
| Power at Ultimate | 6600.00 |
| Pumping Speed Air Nitrogen (@50Hz or max @default setting) | 0.175 |
| Capacity Water Vapour | 6.944 × 10⁻³ |
Environmental Conditions
| Temperature Ambient Operation Max | 50.00 |
| Temperature Ambient Operation Min | 5.00 |
| Temperature Ambient Storage Min | -20.00 |
| Temperature Ambient Storage Max | 60.00 |
Classification
| Classification High / Medium / Rough Vacuum pump | Rough Vacuum Pump |
| Classification Dry or Wet Pump | Dry |
| Classification Vacuum Pump Technology | Dry Screw Pump |
| Classification Product Pressure Range | Medium Vacuum: 1 mbar - 1·10⁻³ mbar |
