DZS 600 VSD+ Dry Claw Vacuum Pump, 11 kW (@50 Hz) IEC - UL/CUL, 200 mbar(a), Air Cooling

Dry Claw Pumps

Dry claw vacuum pumps are positive displacement pumps that use two claw-shaped rotors to trap and compress gas to create a vacuum. They are oil-free, low maintenance, and can operate continuously without experiencing wear and tear. They are commonly used in industrial applications that require continuously generation of rough vacuum.

DZS VSD+

Single stage dry claw vacuum pump controlled and boosted its speed by Kostal inverter, not only the pumping speed is boosted to a higher level, but also the pressrue set point control is available via the VSD+ App on smart phone or lap top.

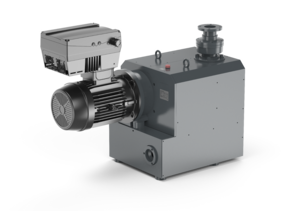

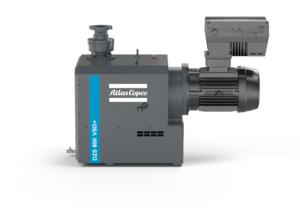

DZS 600 VSD+

single stage dry claw vacuum pump, ultimate pressure down to 200 mbar(a)

Features and Benefits

• The DZS 600 VSD + and DZS 1200 VSD + are a range of dry claw vacuum pumps; single stage, oil-free, air-cooled and with the VSD + inverter drive technology built-in. The DZS VSD + series are a range of long life and durable pumps with very low maintenance for rough vacuum applications. These compact machines with small footprint deliver high reliability through a rugged and robust design. Due to the integrated VSD + inverter drive and pressure setpoint control, the pump is capable to run with elevated rotor speeds while matching the motor speed to the load coming from the process. The pump can run at its ultimate vacuum level continuously without overheating.
