Spezifikationen
| Displacement @50Hz Max | 1.15 |
| Power Total Rated @50Hz | 11000.00 |
| Power Total Rated @60Hz | 11000.00 |
| Noise / Sound Level | 75.00 db(A) |

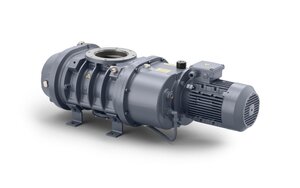

ZRS 4200 Mechanical Booster Pump, 11 kW (@50 Hz), 80 mbar(dp), Water Cooling
Mechanical Booster pumps
ZRS 250-4200
Based on the simple Roots principle, our mechanical booster pumps remain the favorite pumps for applications where high pumping speeds are required for pressures in the region of 0.01 to 50 mbar. This pump must always be backed by another pump, which can deliver against a high-pressure differential to atmospheric pressure. Operating at relatively low pressures, the mechanical booster pump is not exposed to the same concentrations of corrosive process media as is the backing pump, which makes it highly reliable.
Features you can rely on:
Pumping speed ZRS: 375-4985 m³/h
• Suitable for applications where high pumping speeds are required in the pressure region of 0.01 to 50 mbar/0.0075 to 37.5 Torr
• The ZRS pumps have a high quality, oil-free pumping mechanism
• The design of the shaft seals is optimized to ensure that no lubricants can migrate into the pumping mechanism
• The dynamically balanced rotors and precision ground gears contribute to the smooth, quiet operation of the pumps
The DRB Roots booster pump is air-cooled and with integrated bypass and offers peace of mind in food packaging applications.
General Product Information
| Dimension Length | 1.14 |
| Dimension Height | 0.498 |
| Dimension Width | 0.522 |
| Connection Inlet Flange | DN 250 ISO-F |
| Noise / Sound Level | 75.00 db(A) |
| Power Supply Frequency | 50 Hz |
| Weight | 481.00 |
| Power Supply Phase | 3-Ph |
| Cooling Method | Water Cooling |
| Connection vacuum outlet flange | DN 100 ISO-F |
| Power Supply Voltage | 3Ph 380-400V 50Hz |
Performance Data
| Nominal rotational speed | 48.00 |
| Power Total Rated | 11000.00 |
| Power Total Rated @50Hz | 11000.00 |
| Power Total Rated @60Hz | 11000.00 |
| Pressure Differential Max @50Hz | 8000.00 |
| Pressure Differential Max @60Hz | 5000.00 |
| Displacement @50Hz Max | 1.15 |
Classification
| Classification Dry or Wet Pump | Dry pump |
| Classification Vacuum Pump Technology | Mechanical Booster Pump |
Operation Conditions - Limitations
| Altitude Max | 1000.00 |
| Oil Capacity Max | 3.500 × 10⁻³ |
| Flow Cooling Water Min | 1.000 × 10⁻⁴ |
Environmental Conditions
| Temperature Ambient Operation Max | 40.00 |
| Temperature Ambient Operation Min | 5.00 |
| Temperature Ambient Storage Min | -20.00 |
| Temperature Ambient Storage Max | 80.00 |
