Spezifikationen
| Nennsaugvermögen 50Hz | 0.194 |
| Nennsaugvermögen 60Hz | 0.233 |
| Nennleistung gesamt @50Hz | 15000.00 |
| Nennleistung gesamt @60Hz | 18500.00 |
| Geräuschpegel | 72.00 db(A) 72.00 db(A) |

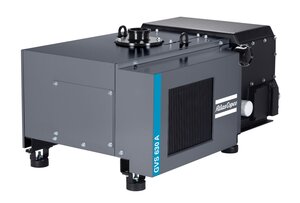

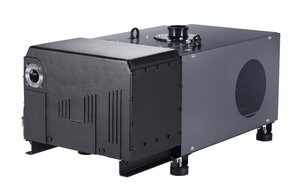

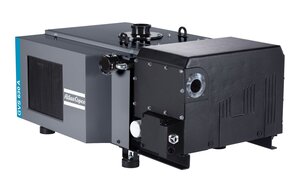

GVS 630A einstufige Drehschieberpumpe, 15 kW (@50 Hz), 0.2 mbar(a), Luftkühlung
21.830,00 EUR
GVS 630A
Durch die Bereitstellung hoch effizienter Vakuumleistung ist die GVS 16-630 A Serie ideal für anspruchsvolle Anwendungen in der Verpackung, Holzbearbeitung, Gummi-, Kunststoff-, Elektronik-, Papier- und Druckindustrie, Materialhandling und anderen präzisen Industrien. Zudem bieten 11 Modelle Saugvermögen von 16 bis 840 m³.
Features and Benefits
- • Einfach zu installieren dank kompakter, platzsparender Bauweise • Hohe Zuverlässigkeit durch robustes Design und optimale Ölretention bei allen Betriebsdrücken • Geringer Wartungsaufwand und Verschleiß durch optimal gewählte Wellengeschwindigkeiten • Niedrige Geräusch- und Vibrationspegel im gesamten Druckbereich • Unsere kühlsten Pumpentemperaturen auf dem Markt ermöglichen eine längere Öllebensdauer • Kann bei jedem Einlassdruck im Dauerbetrieb betrieben werden • Hohe Wasseraufnahmefähigkeit und lange Öllebensdauer
General Product Information
| Länge | 1567.00 |
| Höhe | 1068.00 |
| Breite | 909.00 |
| Ansaugflansch / Einlass |
DN 100
ASA/ANSI 4" |
| Geräuschpegel |
72.00
db(A)
72.00 db(A) |
| Netzfrequenz |
50 Hz
60 Hz |
| Gewicht | 760.00 |
| Netz Phase | 3-Ph |
| Kühlmethode | Luftkühlung |
| Auslassflansch / Auslass |
DN 100
ASA/ANSI 4" |
| Netzspannung | 3Ph 200-230/380-400V 50Hz |
Lubricants
| Standard Schmiermittel | V-Lube G |
Performance Data
| Druck Vorvakuum max. | 1.163 × 10⁵ |
| Nenndrehzahl | 50.00 |
| Nennleistung gesamt | 15000.00 |
| Nennleistung gesamt @50Hz | 15000.00 |
| Nennleistung gesamt @60Hz | 18500.00 |
| Saugvermögen Luft Stickstoff bei 60Hz | 0.210 |
| Saugvermögen Luft Stickstoff bei 50Hz | 0.178 |
| Nenndrehzahl 50Hz | 50.00 |
| Nenndrehzahl 60Hz | 50.00 |
| Nennsaugvermögen 50Hz | 0.194 |
| Nennsaugvermögen 60Hz | 0.233 |
Classification
| Klassifikation Hoch Mittel Grob-Vakuumpumpe | Grobvakuumpumpe |
| Klassifikation trockene oder nasse Pumpe | Ölgedichtete Pumpe |
| Klassifikation Vakuumpumpen-Technologie | Öl-Drehschieberpumpen einstufig |
| Klassifikation Produkt Druckbereich | Grobvakuum 1000 mbar - 1 mbar |
Variants
| Elektrische Zulassung | Welt |
| Variante | Standardversion |
| Power Pack Version | mit Elektromotor |
| Einlassfilter | ohne Einlassfilter |
Operation Conditions - Limitations
| Einlassdruck absolut maximal kontinuierlich | 1.013 × 10⁵ |
| Einsatzhöhe Max | 1000.00 |
| Maximale Ölmenge | 23.00 |
Environmental Conditions
| Temperatur Umgebung im Betrieb Max | 40.00 |
| Temperatur Umgebung im Betrieb Min | 12.00 |
| Temperatur Umgebung Lagerung Min | -20.00 |
| Temperatur Umgebung Lagerung Max | 50.00 |
